Services
One of our most important resources is our large machine park and spacious capacities, which allow us to execute even the most demanding projects. Combined with the expertise of our team, we are capable of producing the largest constructions with the highest precision. You can find the list of CNC machines and technology we possess in the following document:
DOWNLOAD DOCUMENT
ENGINEERING

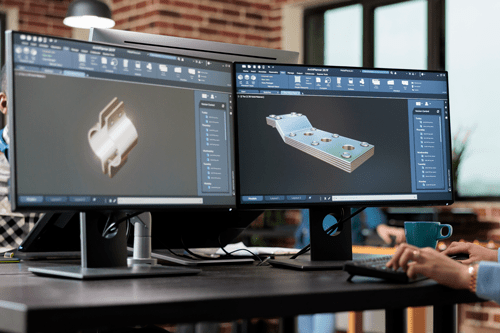

3D DESIGN - CAD & SolidWorks
PRODUCTION
SHEET METAL
-work surface: 4000 x 2000 mm
-black material from 0.5 to 25 mm
-stainless steel from 0.5 to 20 mm
-aluminum from 0.5 to 10 mm
PIPES (3D cutting)
-square pipes: from 15x15x6000 mm to 180x180x6000 mm
-round tubes: from Φ12mm x 6000mm to Φ250mm x 6000mm
-all other profiles up to 38 kg/m and up to length of 6000 mm.
SHEET METAL
bending length up to 4000 mm depending on material thickness.
PIPES
bending pipes from Φ5 mm to Φ102 mm x 4000 mm
MILLING
– mašinska obrada glodanjem na komadima gabarita do 1000x1000x6000mm
– glodanje sa 5 osa
AXA – VHC 3 – 6000 XTS
AXA – VHC 3 – 4000 XTS
HAAS VM-3
TURNING
- turning up to a diameter of 220 mm and a length of 500 mm, on a lathe with milling capabilities
NAKAMURA – AS – 200LMYS
OTHER
- machining on welded structures, as well as custom precision components, tool manufacturing, etc.
SHEET METAL
- material: up to 1250 x 2500 mm
- thickness: up to 4 mm (depending on the material)
-TIG/WIG
-MIG/MAG
-Spot welding
-Robotic welding
SHEET METAL
-work surface: 4000 x 2000 mm
-black material from 0.5 to 25 mm
-stainless steel from 0.5 to 20 mm
-aluminum from 0.5 to 10 mm
PIPES (3D cutting)
-square pipes: from 15x15x6000 mm to 180x180x6000 mm
-round tubes: from Φ12mm x 6000mm to Φ250mm x 6000mm
-all other profiles up to 38 kg/m and up to length of 6000 mm.
SHEET METAL
bending length up to 4000 mm depending on material thickness.
PIPES
bending pipes from Φ5 mm to Φ102 mm x 4000 mm
MILLING
– mašinska obrada glodanjem na komadima gabarita do 1000x1000x6000mm
– glodanje sa 5 osa
AXA – VHC 3 – 6000 XTS
AXA – VHC 3 – 4000 XTS
HAAS VM-3
TURNING
- turning up to a diameter of 220 mm and a length of 500 mm, on a lathe with milling capabilities
NAKAMURA – AS – 200LMYS
OTHER
- machining on welded structures, as well as custom precision components, tool manufacturing, etc.
SHEET METAL
- material: up to 1250 x 2500 mm
– debljina: do 4 mm (zavisno od materijala
-TIG/WIG
-MIG/MAG
-Spot welding
-Robotic welding
FINALIZATION
